YC5310FS1ER
More
Model :

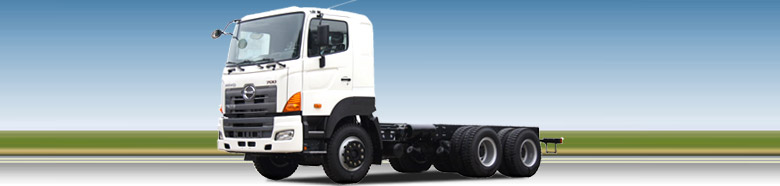

YC5310FS1ER concrete-pump truck chassis
Driveline :
6×4
Permissible weight (kg) :
Max. gross weight :
31000
Overall dimension(mm)length x width x height :
9210×2495×3030
Dump body inside dimension (mm) :
Wheelbase :
4500+1410
Track (mm) FR/RR :
2060/1855
Suspension FR/RR (mm) :
1410/1890
Overhand (FR/RR) (mm) :
Approach/Departure angle(°) :
≥18≥13
Min. ground clearance(mm) :
＞200
Min turning diameter (mm) :
≤20
Curb weight :
9600
Max.speed（km/h) :
100
Engine model :
E13C TM
Power rating (ps)kw/r/min :
（410）302/1800
Max torque (Nm/r/min） :
1863/1100
Displacement (L) :
12.913
Rated working volume (m³) :
Geometric volume ( m³) :
Max diameter of drum (mm) :
Front/rear axle :
8t/13t double rear axle
Transmission :
ZF16S221
Clutch :
φ380 double-disc dry type
Power takeoff :
transmission power takeoff TP-1
Feeding speed ( m³/min) :
Discharging speed ( m³/min) :
Main reducation ratio of rear axle :
Tire :
11.00-20. 11.00R20. 295/80R22.5
Emission :
Euro Ⅲ
Cab :
Four-points full-floating, electronically controlled hydraulic cab tipping system.
Dump body lifting time(s)(no-load) :
Dump body landing time(s)(no-load) :
Max.lifting angle(°) :
Note :
