Model :

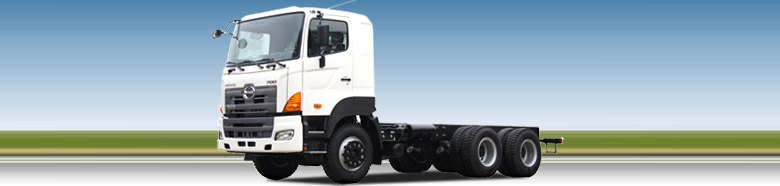

YC1250FS2PK cargo truck chassis
Permissible weight (kg) :
Max. gross weight :
25000
Overall dimension(mm)length x width x height :
7330×2495×3070
Dump body inside dimension (mm) :
Track (mm) FR/RR :
2060/1855
Suspension FR/RR (mm) :
1410/1210
Approach/Departure angle(°) :
≥20/≥30
Min. ground clearance(mm) :
＞220
Min turning diameter (mm) :
≤16
Max.speed（km/h) :
P11C-UJ
Power rating (ps)kw/r/min :
(1350)259/2100
Max torque (Nm/r/min） :
1454/1100
Displacement (L) :
10.520
Rated working volume (m³) :
Max diameter of drum (mm) :
Front/rear axle :
8t/13t double rear axle
Transmission :
RT-11509C/DC12J150T
Clutch :
φ430 single-disc dry type
Power takeoff :
Engine rear power takeoff or transmission power takeoff TP-2/TP-3
Feeding speed ( m³/min) :
Discharging speed ( m³/min) :
Main reducation ratio of rear axle :
Tire :
11.00-20. 11.00R20. 295/80R22.5
Cab :
Four-points full-floating, electronically controlled hydraulic cab tipping system.
Dump body lifting time(s)(no-load) :
Dump body landing time(s)(no-load) :
