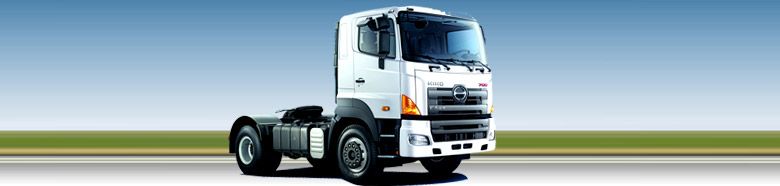

YC4180SH2PE
More
Model :
YC4180SH2PE
Driveline :
4X2
Permissible weight (kg) :
34570
Max. gross weight :
18000
Overall dimension(mm)length x width x height :
5875X2495X3030(3520)
Dump body inside dimension (mm) :
Wheelbase :
3450
Track (mm) FR/RR :
2060/1855
Suspension FR/RR (mm) :
1410/1015
Overhand (FR/RR) (mm) :
Approach/Departure angle(°) :
Min. ground clearance(mm) :
200
Min turning diameter (mm) :
14
Curb weight :
7300
Max.speed（km/h) :
90,120
Engine model :
P11C-UJ , P11C-UR
Power rating (ps)kw/r/min :
(350)259/2100 , (380)280/2100
Max torque (Nm/r/min） :
1454/1100 , 1594/1100
Displacement (L) :
10.52
Rated working volume (m³) :
Geometric volume ( m³) :
Max diameter of drum (mm) :
Front/rear axle :
7000kg/13000kg
Transmission :
RT-11509C/DC12J150T/DC12J180T
Clutch :
single dry plate 430mm
Power takeoff :
Feeding speed ( m³/min) :
Discharging speed ( m³/min) :
Main reducation ratio of rear axle :
Tire :
11.00-20,11.00R20,295/80R22.5
Emission :
Euro III
Cab :
Four-points full-floating, electronically controlled hydraulic cab tipping system
Dump body lifting time(s)(no-load) :
Dump body landing time(s)(no-load) :
Max.lifting angle(°) :
Note :
